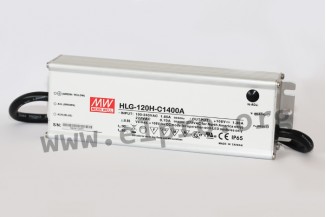

Mean Well LED driver series HLG-120H-C

LED drivers in a metal housing (IP65) with a high output voltage, 150W and a constant current. These devices comply with EN55015, are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are not dimmable. We offer the following types of this Mean Well series: HLG-120H-C350A, HLG-120H-C500A, HLG-120H-C700A, HLG-120H-C1050A and HLG-120H-C1400A.

single output
output: 150 to 155,4W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 50A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 220x68x38,8mm
weight: 1040g
