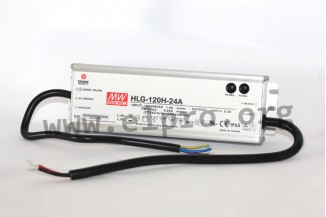

Mean Well LED driver series HLG-120H

LED drivers in a metal housing (IP65) with a constant current/constant voltage (mixed mode) and 120W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547 and have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-120H-12A, HLG-120H-15A, HLG-120H-20A, HLG-120H-24A, HLG-120H-30A, HLG-120H-36A, HLG-120H-42A, HLG-120H-48A and HLG-120H-54A.

single output
output: 120 to 124,2W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 60A
overcurrent protection: 95 to 108%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +80°C
dimensions: 220x68x38,8mm
weight: 1120g
