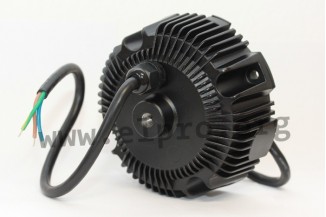

Mean Well LED driver series HBG-100

LED drivers in a round metal housing (IP65) with a constant current, 100W and a built-in active PFC function. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in potentiometer for adjusting the current limitation. We offer the following types of this Mean Well series: HBG-100-36A, HBG-100-48A and HBG-100-60A.

single output
output: 96 to 97,2W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 60A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -40 to +85°C
dimensions: Ø130x66,5mm
weight: 1180g

Matching heatsinks

> More

Data Sheet
