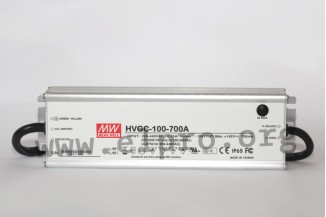

Mean Well LED driver series HVGC-100

LED drivers in a metal housing (IP65) with a constant current and 100W. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation. We offer the following types of this Mean Well series: HVGC-100-350A and HVGC-100-700A.

single output
output: 99,4 to 99,75W
input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
maximal input inrush current: 25A/480V DC
efficiency: 91%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 236x68x38,8mm
weight: 1180g
