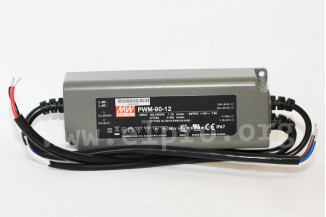

Mean Well LED driver series PWM-90

LED drivers in a plastic housing (IP67) with a PWM style output, 90W and a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer). These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13 as well as EN55015. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-90-12, PWM-90-12EU, PWM-90-24, PWM-90-36 and PWM-90-48.

single output
output: 90 to 90,24W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 60A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
operating temperature: -40 to +85°C
dimensions: 171x63x37,5mm
weight: 770g
