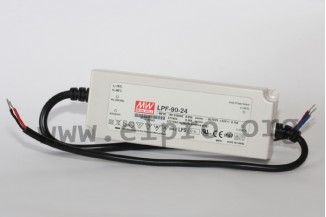

Mean Well LED driver series LPF-90

LED drivers in a plastic housing (IP67) with a constant voltage / constant current (mixed mode), a universal input and 90W. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and are suitable for LED lighting applications. They comply with UL1310 class 2, EN61000-3-2 class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: LPF-90-15, LPF-90-20, LPF-90-24, LPF-90-30, LPF-90-36, LPF-90-42, LPF-90-48 and LPF-90-54.

single output
output: 75 to 90,3W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 70A
withstand voltage I/P-O/P: 3750V AC
operating temperature: -40 to +70°C
dimensions: 161x61x36mm
weight: 700g

> More

Data Sheet
