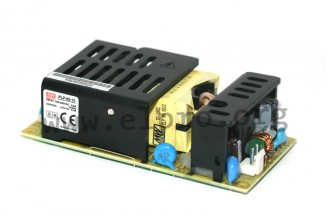

Mean Well LED driver series PLP-60

LED drivers with an adjustable output current, a universal input and 60W. These devices are not dimmable, are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage ...

Mean Well LED driver series PLP-60

LED drivers with an adjustable output current, a universal input and 60W. These devices are not dimmable, are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage as well as short circuit. They comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: PLP-60-12, PLP-60-24 and PLP-60-48.

  • single output
  • output: 60 to 62,4W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 35A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 101,6x50,8x29,6mm
  • weight: 160g
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    PLP-60-12
    13,29 €
    35141 PLP-60-12 PLP-60-12
    13,29 €

    More
    Stock: 12
  • Mean Well
    PLP-60-24
    13,09 €
    35139 PLP-60-24 PLP-60-24
    13,09 €
    Quantity Unit price
    50 + 12,29 €

    More
    Stock: 538
  • Mean Well
    PLP-60-48
    14,69 €
    35140 PLP-60-48 PLP-60-48
    14,69 €
    Quantity Unit price
    50 + 13,69 €

    More
    Stock: 43
Showing 1 - 3 of 3 products
