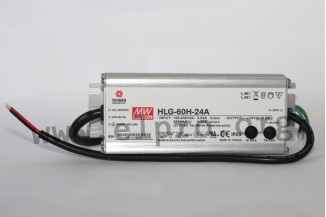

Mean Well LED driver series HLG-60H

LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode) and 60W. These SELV compliant devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They have a built-in active PFC function and a built-in potentiometer for adjusting the current limitation as well as the output voltage. We offer the following types of this Mean Well series: HLG-60H-15A, HLG-60H-20A, HLG-60H-24A, HLG-60H-30A, HLG-60H-36A, HLG-60H-42A, HLG-60H-48A and HLG-60H-54A.

single output
output: 60 to 62,4W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 55A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +80°C
dimensions: 171x61,5x36,8mm
weight: 730g
