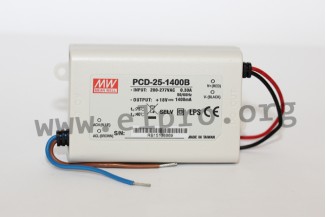

Mean Well LED driver series PCD-25

LED drivers in a plastic housing (IP42) with a constant current, 25W and a stranded wire connection. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function, are suitable for LED lighting applications and are suitable for phase angle as well as phase cut dimmers. We offer the following types of this Mean Well series: PCD-25-350B, PCD-25-700B, PCD-25-1050B and PCD-25-1400B.

single output
output: 20,3 to 25,2W
input voltage: 180 to 295V AC (47 to 63Hz)
maximal input inrush current: 10A
withstand voltage I/P-O/P: 3750V AC
operating temperature: -30 to +60°C
dimensions: 84x57x29,5mm
weight: 190g

> More

Data Sheet
