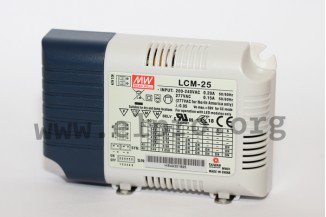

Mean Well LED driver series LCM-25

LED switching power supplies in a plastic case (IP20) with a constant current (selectable through a DIL switch), a DALI (LCM-25DA) resp. a DALI 2.0 interface (LCM-25DA2), 25W and protection class II. These devices are protected against overvoltage, short circuit, overload (auto recovery) as well as overtemperature and comply with EN61347-1, EN61347-2-13 as well as EN55015. They have a dimming function (0 to 10V, PWM) as well as a built-in active PFC function and are suitable for LED lightning applications. We offer the following types of this Mean Well series: LCM-25, LCM-25DA and LCM-25DA2.

single output
output: 18,9 to 25,2W
input voltage: 180 to 277V AC (47 to 63Hz), 254 to 392V DC
maximal input inrush current: 20A
withstand voltage I/P-O/P: 3750V AC
operating temperature: -30 to +85°C
weight: 160g
constant current selectable through a DIL switch:
- 6 to 54V U_A (350mA I_A)
- 6 to 50V U_A (500mA I_A)
- 6 to 42V U_A (600mA I_A)
- 6 to 36V U_A (700mA I_A)
- 6 to 28V U_A (900mA I_A)
- 6 to 24V U_A (1050mA I_A)
