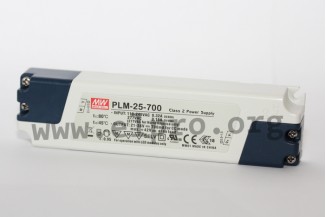

Mean Well LED driver series PLM-25

LED drivers in a plastic housing (IP30) with a universal input, a constant current, a low no-load power and 25W. These devices are protected against overload (auto recovery) as well as short circuit and are suitable for LED lighting applications. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PLM-25E-350, PLM-25E-500, PLM-25E-700, PLM-25E-1050, PLM-25-350, PLM-25-500, PLM-25-700 and PLM-25-1050.

single output
output: 25 to 25,2W
input voltage PLM-25_: 110 to 295V AC (47 to 63Hz), 156 to 416V DC
input voltage PLM-25E_: 180 to 295V AC (47 to 63Hz), 254 to 416V DC
maximal input inrush current: 15A
no-load power: <0,5W
operating temperature: -30 to +45°C
withstand voltage I/P-O/P: 3750V AC
dimensions: 145x38x22
weight: 126g
