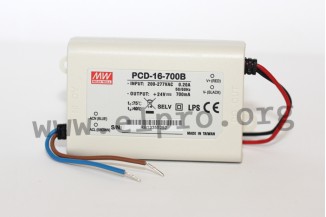

Mean Well LED driver series PCD-16

LED drivers in a plastic housing (IP42) with AC dimming, a constant current, a stranded wire connection and 16W. These devices are protected against overtemperature, overload (auto recovery) as well as short circuit and comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for phase-cut and phase-angle dimmers as well as for LED lighting applications. We offer the following types of this Mean Well series: PCD-16-350B, PCD-16-700B, PCD-16-1050B and PCD-16-1400B.

single output
output: 16,8W
input voltage: 180 to 295V AC (47 to 63Hz)
maximal input inrush current: 10A
withstand voltage I/P-O/P: 3750V AC
operating temperature: -30 to +60°C
dimensions: 58x57x29,5mm
weight: 190g
