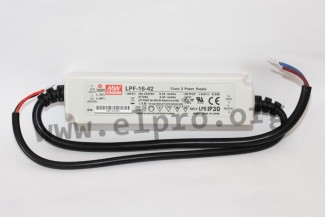

Mean Well LED driver series LPF-16

LED drivers in a plastic housing (IP30) with a constant voltage/constant current (mixed mode), 16W and a universal input. These devices are suitable for LED lighting applications and comply with UL1310 Class 2, EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: LPF-16-12, LPF-16-15, LPF-16-20, LPF-16-24, LPF-16-30, LPF-16-36, LPF-16-42, LPF-16-48 and LPF-16-54.

single output
output: 16 to 16,38W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 45A
withstand voltage I/P-O/P: 3750V AC
operating temperature: -35 to +70°C
dimensions: 148x40x32mm
weight: 210g

> More

Data Sheet
