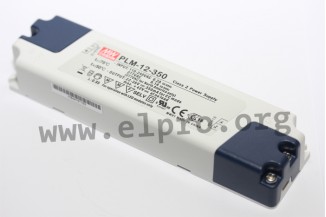

Mean Well LED driver series PLM-12

LED drivers in a plastic housing (IP30) with a low no-load power, 12W and a universal input. These devices are protected against overload (auto recovery) as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: PLM-12E-350, PLM-12E-500, PLM-12E-700, PLM-12E-1050, PLM-12-350, PLM-12-500, PLM-12-700 and PLM-12-1050.

single output
output: 12 to 12,6W
input voltage PLM-12_: 110 to 295V AC (47 to 63Hz), 156 to 416V DC
input voltage PLM-12E_: 180 to 295V AC (47 to 63Hz), 254 to 416V DC
maximal input inrush current: 15A
no-load power: <0,5W
operating temperature: -30 to +50°C
withstand voltage I/P-O/P: 3750V AC
dimensions: 145x38x22mm
weight: 126g
