Mean Well power supply series PT-65

Open frame type switching power supplies with 65W, a universal input and a pin strip connection for nylon crimp terminals. These devices have a fanless design and are protected against overload (auto recovery), ...

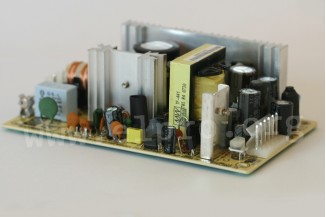

Mean Well power supply series PT-65

Open frame type switching power supplies with 65W, a universal input and a pin strip connection for nylon crimp terminals. These devices have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PT-65A, PT-65B, PT-65C and PT-65D.

  • triple output
  • output: 60 to 68W
  • input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <0,75mA
  • output voltage adjustment: +10/-5%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 250g
> More
Data Sheet
