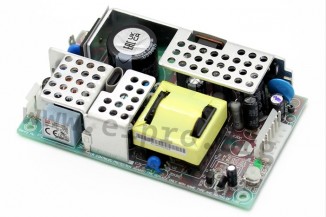

Mean Well power supply series PD-65 and PRD-65

Open frame type switching power supplies with 65W and a universal input. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PD-65A, PD-65B, RPD-65C and RPD-65D.

dual output
output: 60 to 65,5W
input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
maximal input inrush current: 40A (PD_) resp. 50A (RPD_)
leakage current: <0,75mA (PD_) resp. <1mA (RPD_)
output voltage adjustment: +10/-5%
overload protection: 73 to 105W
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -10 to +60°C
weight: 240g
