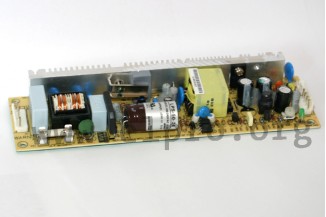

Mean Well power supply series LPS-50

Open frame type switching power supplies with 50W, a universal input and a built-in remote ON/OFF control. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low profile (23mm) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: LPS-50-3.3, LPS-50-5, LPS-50-12, LPS-50-15, LPS-50-24 und LPS-50-48

single output
output: 33 to 52,8W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 35A
leakage current: <1mA
output voltage adjustment: ±10%
overload protection: 122 to 160%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 1500V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -20 to +70°C
weight: 240g
