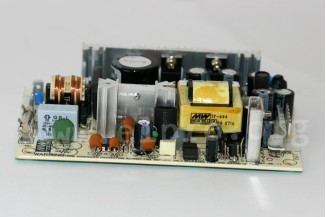

Mean Well power supply series PT-45

Open frame type switching power supplies with 45W and a universal input. These devices have a fixed switching frequency and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PT-45A, PT-45B and PT-45C.

triple output
output: 40,5 to 43,5W
input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
leakage current: <0,75mA
output voltage adjustment: +10/-5%
overload protection: 53 to 75W
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 1500V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -10 to +60°C
weight: 210g
