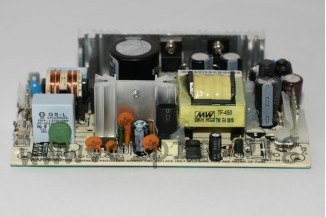

Mean Well power supply series PD-45

Open frame type switching power supplies with 45W and a universal input. These devices have a pin strip connection for nylon-crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fixed switching frequency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PD-45A and PD-45B.

dual output
output: 40 to 44,8W
input voltage: 90 to 264V AC (47 to 440Hz), 127 to 370V DC
maximal input inrush current: 30A
leakage current: <0,75mA
output voltage adjustment channel 1: 4,75 to 5,5V
overload protection: 53 to 75W
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -10 to +60°C
weight: 200g
