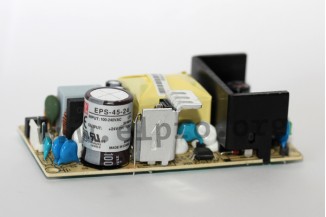

Mean Well power supply series EPS-45

Switching power supplies in a compact housing (open frame, 4"x2") with 45W, a universal input and a low no-load power. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 4000m and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-45-3.3, EPS-45-5, EPS-45-7.5, EPS-45-12, EPS-45-15, EPS-45-24, EPS-45-36 and EPS-45-48.

single output
output: 26,4 to 48W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 60A
leakage current: <2mA
overload protection: 115 to 160%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 140g
