Mean Well power supply series RSP-2400

Switching power supplies in an enclosed housing with 2400W, a parallel function, a built-in remote ON/OFF control, a power fail signal, a built-in remote sense function, screw terminals, a fan, a built-in aux...

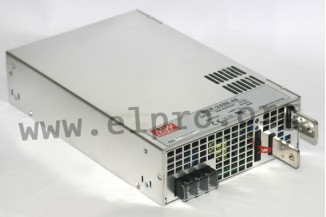

Mean Well power supply series RSP-2400

Switching power supplies in an enclosed housing with 2400W, a parallel function, a built-in remote ON/OFF control, a power fail signal, a built-in remote sense function, screw terminals, a fan, a built-in auxiliary power (12V/0,1A), a low no-load power and an active AC input current limiting. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 7200W (2+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-2400-12, RSP-2400-24 and RSP-2400-48.

  • single output
  • output: 2000,4 to 2400W
  • input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <2mA
  • output voltage adjustment: ±10%
  • overload protection: 100 to 112%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 3300g
