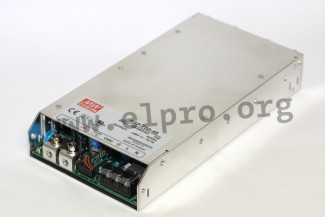

Mean Well power supply series RSP-750

Switching power supplies in an enclosed housing with 750W, screw terminals, a DC OK signal, a trimming function for output voltage / output current (40 to 110% / external voltage 2 to 5,5V DC), a fan, a built-in remote sense function, a low profile (1U), a built-in auxiliary power (standby 5V/0,5A) and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: RSP-750-5, RSP-750-12, RSP-750-15, RSP-750-24, RSP-750-27 and RSP-750-48.

single output
output: 500 to 753,6W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 40A
output voltage adjustment: ±10%
overload protection: 105 to 125%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 1640g
