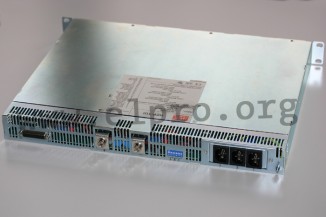

Mean Well power supply series RCP-1000

Switching power supplies in an enclosed housing with 1000W, a fan, a universal input, a parallel function, a hot swap function, an internal ORing diode and a low profile (1U). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an active current sharing of up to 3000W (3 units) in a 19-inch rack and comply with UL/EN60950-1 as well as EN55032 class B. We offer the types RCP-1000-12, RCP-1000-24 and RCP-1000-48 of this Mean Well series as well as the matching 19" racks RCP-1UI and RCP-1UT and the matching control/monitor unit RCP-MU.

single output
output: 720 to 1008W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 50A
leakage current: <1,1mA
output voltage adjustment: ±3%
overload protection: 105 to 125%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 700V AC
operating temperature: -20 to +60°C
weight: 1910g
