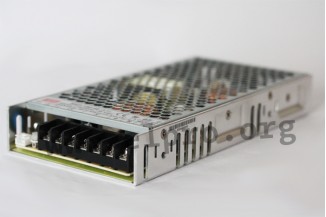

Mean Well power supply series RSP-150

Switching power supplies in an enclosed housing with 150W, a universal input, screw terminals and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RSP-150-3.3, RSP-150-5, RSP-150-7.5, RSP-150-12, RSP-150-13.5, RSP-150-15, RSP-150-24, RSP-150-27 and RSP-150-48.

single output
output: 99 to 153,6W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 40A
leakage current: <2mA
output voltage adjustment: -5/+10%
overload protection: 105 to 135%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 600g
