Mean Well power supply series TP-150

Switching power supplies in an enclosed housing with 150W, a triple output, a universal input and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto reco...

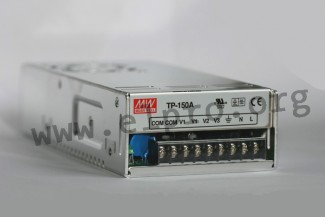

Mean Well power supply series TP-150

Switching power supplies in an enclosed housing with 150W, a triple output, a universal input and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in DC fan for cooling and comply with UL60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the type TP-150A of this Mean Well series.

  • triple output
  • output: 150W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <3,5mA
  • output voltage adjustment: -5/+10%
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 900g
