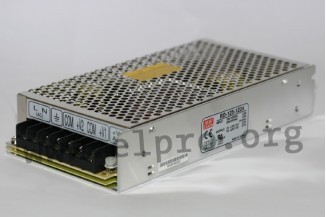

Mean Well power supply series RD-125

Switching power supplies in an enclosed housing with 125W, a dual output and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a switch for selecting the AC input range (115V/230V) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RD-125A, RD-125B, RD-125-1224, RD-125-2412, RD-125-1248, RD-125-4812, RD-125-2448 and RD-125-4824.

dual output
output: 130,9 to 144W
input voltage: 88 to 132V AC / 176 to 264V AC (47 to 63Hz), 248 to 373V DC
maximal input inrush current: 40A
leakage current: <2mA
output voltage adjustment: +10/-5%
overload protection: 110 to 150%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -25 to +70°C
weight: 700g
