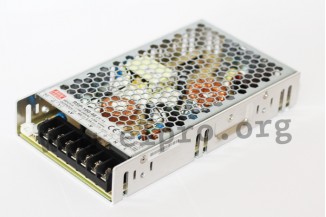

Mean Well power supply series RSP-100

Switching power supplies in an enclosed housing with 100W, a low profile (1U), screw terminals and a universal input. These devices are suitable for control cabinet mounting (19") and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control as well as a built-in active PFC function and comply with UL/EN62368-1, EN61558-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RSP-100-3.3, RSP-100-5, RSP-100-7.5, RSP-100-12, RSP-100-13.5, RSP-100-15, RSP-100-24, RSP-100-27 and RSP-100-48.

single output
output: 66 to 102,6W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 30A
leakage current: <2mA
output voltage adjustment: -5/+10%
overload protection: 105 to 135%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 520g
