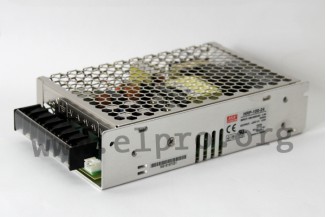

Mean Well power supply series HRP-100

Switching power supplies in an enclosed housing with 100W, a universal input, screw terminals, a low profile and a low no-load power. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage (300V AC / 5s) as well as short circuit. They have a built-in remote ON/OFF control and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HRP-100-3.3, HRP-100-5, HRP-100-7.5, HRP-100-12, HRP-100-15, HRP-100-24, HRP-100-36 and HRP-100-48.

single output
output: 66 to 108W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 65A
leakage current: <1mA
overload protection: 105 to 135%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -40 to +60°C
weight: 560g
