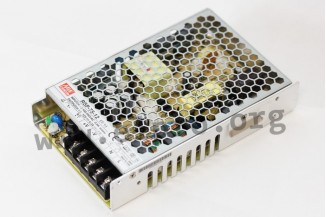

Mean Well power supply series RSP-75

Switching power supplies in an enclosed housing with 75W, a universal input, screw terminals, a low profile (1U) and a built-in remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RSP-75-3.3, RSP-75-5, RSP-75-7.5, RSP-75-12, RSP-75-13.5, RSP-75-15, RSP-75-24, RSP-75-27 and RSP-75-48.

single output
output: 49,5 to 76,8W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 35A
leakage current: <2mA
output voltage adjustment: -5/+10%
overload protection: 105 to 135%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -25 to +70°C
weight: 440g
