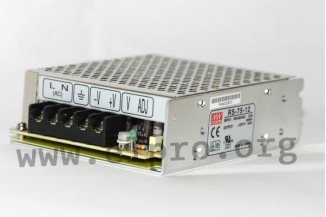

Mean Well power supply series RS-75

Switching power supplies in an enclosed housing with 75W, screw terminals and a universal input. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a low no-load power and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-75-3.3, RS-75-5, RS-75-12, RS-75-15, RS-75-24 and RS-75-48.

single output
output: 49,5 to 76,8W
input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
maximal input inrush current: 40A
leakage current: <2mA
output voltage adjustment: +10/-5%
overload protection: 110 to 150%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -25 to +70°C
weight: 410g
