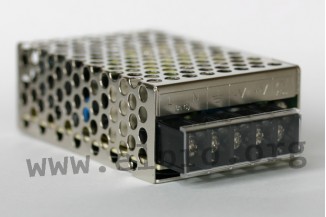

Mean Well power supply series RS-25

Switching power supplies in an enclosed housing with 25W, a universal input and screw terminals. These devices have a fanless design and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-25-3.3, RS-25-5, RS-25-12, RS-25-15, RS-25-24 and RS-25-48.

single output
output: 19,8 to 27,36W
input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
maximal input inrush current: 30A
leakage current: <2mA
output voltage adjustment: +10/-5%
overload protection: 110 to 180%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -20 to +70°C
weight: 200g
