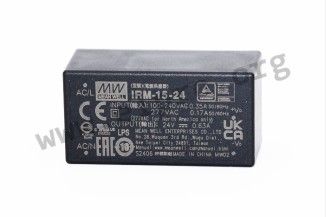

Mean Well power supply series IRM-15

Switching power supplies in an enclosed housing (PCB) with 15W, a universal input, insulation class II and a low no-load power. These devices have a fanless design and are protected against overload, overtemperature as well as short circuit. They are suitable for PCB mounting and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: IRM-15-3.3, IRM-15-5, IRM-15-12, IRM-15-15 and IRM-15-24.

single output
output: 11,55 to 15,12W
input voltage: 90 to 305V AC (47 to 440Hz), 120 to 430V DC
maximal input inrush current: 40A
no-load power: <0,1W
withstand voltage: 3000V AC
operating temperature: -30 to +70°C
dimensions: 52,4x27,2x24mm
weight: 59g
