Recom AC/DC converter series RAC10

AC/DC converter modules in an enclosed plastic housing with 10W, a universal input and a low no-load power. These devices are suitable for PCB mounting, are protected against overload (auto recovery), short circu...

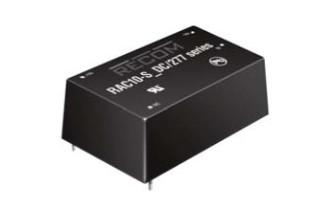

Recom AC/DC converter series RAC10

AC/DC converter modules in an enclosed plastic housing with 10W, a universal input and a low no-load power. These devices are suitable for PCB mounting, are protected against overload (auto recovery), short circuit (continuous) as well as overvoltage and comply with EN55032 class B, EN61000-3-3 as well as EN60950-1. We offer the following types of this Recom series: RAC10-05SC/277, RAC10-12SC/277, RAC10-15SC/277 and RAC10-24SC/277.

  • single output
  • output: 10W
  • input voltage: 80 to 305V AC (47 to 63Hz), 113 to 430V DC
  • output voltage tolerance: ±2%
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 3750V AC (1min)
  • operating temperature: -20 to +70°C
  • dimensions: 52,5x27,4x23,5mm
  • weight: 62g
> More
Data Sheet
