Stelvio Kontek multiconnector series CPF5,08

* screw-cage clamp principle
* conductor: vertical
* pitch: 5.08mm
* 2- to 6-pole
* by Stelvio Kontek
* rated voltage: 320V
* rated current: 20A
* rated cross section, single and fine stranded wire: 0.2 to ...

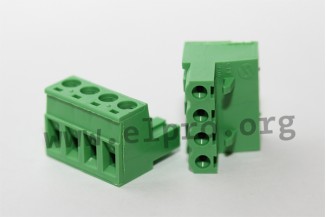

Stelvio Kontek multiconnector series CPF5,08

* screw-cage clamp principle
* conductor: vertical
* pitch: 5.08mm
* 2- to 6-pole
* by Stelvio Kontek
* rated voltage: 320V
* rated current: 20A
* rated cross section, single and fine stranded wire: 0.2 to 2.5mm²
* stripped length: 7mm
* insulating material: PA
* temperature range: -30 to +120°C
* flammability class: UL94V-0
* colour: green

> More
Data Sheet
