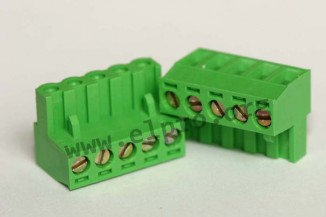

PTR multiconnector series AKZ950

  • screw-cage clamp principle
  • conductor: vertical
  • pitch: 5.08mm
  • 2-, 3-, 4-, 5-, 6-, 8- or 10-pole
  • rated voltage (EN 61984): 250V
  • rated current (T60): 12A
  • measured impulse voltage: 4kV
  • rated cross section single-strand...

PTR multiconnector series AKZ950

  • screw-cage clamp principle
  • conductor: vertical
  • pitch: 5.08mm
  • 2-, 3-, 4-, 5-, 6-, 8- or 10-pole
  • rated voltage (EN 61984): 250V
  • rated current (T60): 12A
  • measured impulse voltage: 4kV
  • rated cross section single-stranded wire: 4.0mm²
  • rated cross section fine-stranded wire: 2.5mm²
  • stripped length: 6mm
  • insulating material: PA
  • temperature range: -30 to +105°C
  • flammability class: UL94V-0
  • colour: green

Matching box headers straight

Matching box headers angled
