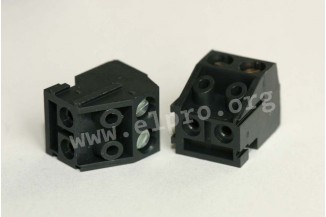

PTR terminal block series AK130

  • 2- to 4-pole terminal blocks in dark grey
  • screw principle with wire guard
  • attach vertically or horizontally to the PCB
  • insulator made of PA (UL94V-0)
  • rated cross section single stranded wire: 1,5mm²
  • rated cross sect...

PTR terminal block series AK130

  • 2- to 4-pole terminal blocks in dark grey
  • screw principle with wire guard
  • attach vertically or horizontally to the PCB
  • insulator made of PA (UL94V-0)
  • rated cross section single stranded wire: 1,5mm²
  • rated cross section fine stranded wire: 1mm²
  • rated voltage: 250V
  • rated current: 10A
  • pitch: 5mm

PTR box header series STL130

  • refractive 24-pole box headers
  • Isolierkörper aus PA (UL94V-0)
  • holes in PCB: Ø1,5mm
  • rated voltage: 250V
  • rated current: 10A
  • pitch: 5mm
> More
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • PTR
    AK 130/02-5,0
    0,292 €
    13770 AK 130/02-5,0 AK130/2-5,0-GRAU AK130/2-5,0-GRAU
    0,292 €

    More
    Stock: 21558
  • PTR
    AK 130/03-5,0
    0,439 €
    13771 AK 130/03-5,0 AK130/3-5,0/GRAU AK130/3-5,0/GRAU
    0,439 €

    More
    Stock: 4950
  • PTR
    series AK 130 by PTR
    0,563 €
    106774 AK 130/04-5,0 AK130/4-5.0-GRAU AK130/4-5.0-GRAU
    0,563 €

    More
    Stock: 1500
  • PTR
    STL 130/24
    0,741 €
    13915 STL 130/24 STL130/24-5,0-V/SW STL130/24-5,0-V/SW
    0,741 €

    More
    Stock: 8290
Showing 1 - 4 of 4 products
