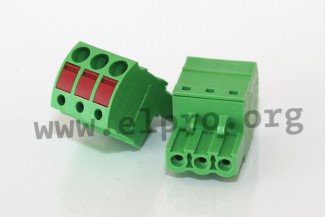

PTR terminal multiconnector series AK4951

  • green terminal blocks with a push-in-principle
  • 2-, 3-, 4-, 5-, 6- or 8-poles
  • suitable for a wire cross section of 0,2 to 2,5mm²
  • insulator is made of PA6.6 (UL94V-0)
  • rated voltage: 250V
  • rated current: 12A
  • p...

PTR terminal multiconnector series AK4951

  • green terminal blocks with a push-in-principle
  • 2-, 3-, 4-, 5-, 6- or 8-poles
  • suitable for a wire cross section of 0,2 to 2,5mm²
  • insulator is made of PA6.6 (UL94V-0)
  • rated voltage: 250V
  • rated current: 12A
  • pitch: 5mm

Matching box headers

Matching box headers 90°

> More
Data Sheet
