> Passive elements>Terminals>Terminal multiconnectors>Stelvio Kontek terminal multiconnectors, pitch 5mm, 20A, 320V, screw-cage clamp principle, CPF5 series

Manufacturers

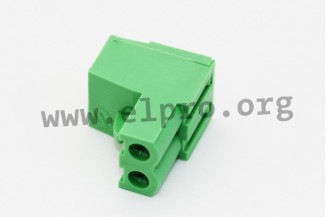

Stelvio Kontek multiconnector series CPF 5

• screw-cage clamp principle
• conductor: vertical
• pitch: 5mm
• 2- to 5-pole
• by Stelvio Kontek
• rated voltage: 320V
• rated current: 20A
• rated cross section, single and fine stranded wire: 0.2 to 2.5mm²...

Stelvio Kontek multiconnector series CPF 5

• screw-cage clamp principle
• conductor: vertical
• pitch: 5mm
• 2- to 5-pole
• by Stelvio Kontek
• rated voltage: 320V
• rated current: 20A
• rated cross section, single and fine stranded wire: 0.2 to 2.5mm²
• stripped length: 7mm
• insulating material: PA
• temperature range: -30°C to +120°C
• flammability class: UL94V-0
• colour: green

> More
Data Sheet
--
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Stelvio
    CPF5/2, Stelvio Kontek terminal multiconnectors, pitch 5mm, 20A, 320V, screw-cage clamp principle, CPF5 series
    0,41 €
    39364 CPF 5/2 grün CPF5/2 CPF5/2
    0,41 €

    More
    Stock: 9
Showing 1 - 1 of 1 product
