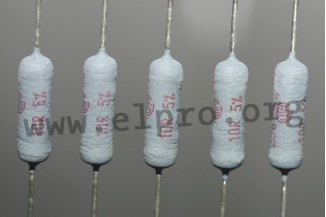

fusible wirewound resistors, 3.5W

• by Vitrohm
• series CRF256-4
• taped
• triggered instantly on contact with mains voltage (230Veff), without flame or explosion
• the resistor wire is wound around a capped ceramic carrier and fused to the caps
• in c...

fusible wirewound resistors, 3.5W

• by Vitrohm
• series CRF256-4
• taped
• triggered instantly on contact with mains voltage (230Veff), without flame or explosion
• the resistor wire is wound around a capped ceramic carrier and fused to the caps
• in case of vaporisation of the wire, a special varnish absorbs the metal vapour and prevents arcing and consequent short circuit.
• the winding wire is dimensioned in such a way that, for all resistance values between 10R and 330R  vaporisation occurs with mains voltage
• the resistor elements are encased in a silicon varnish and, in the classic sense, are not electrically insulated
• for resistance values under 10R as well as for other voltages, it has been ensured that the resistor is flame retardant
• the triggering function, however, has to be tested on an individual basis
• resistance tolerance: ±5%
• power rating (70°C): 3.5W
• operating voltage, max.: (PxR)1/2
• thermal resistance: 65K/W
• insulation resistance: not insulated
• insulation voltage, max. (1 min.): 75V
• temperature coefficient: +120 ±50x10-6/K
• temperature range: -55 to +350°C
• climatic category: 55/350/56
• failure rate (value dependent): approx. 10x10-9/h
• terminal tensile strength: 50N
• solderability: 2.5s
• derating: linear 70°C to 350°C (0W)

> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Vitrohm
    CRF256-4 5% 10 R
    0,05 €
    35356 CRF256-4 5% 10 R CRF256-4 5% 10 R
    0,05 €

    More
    Stock: 10
