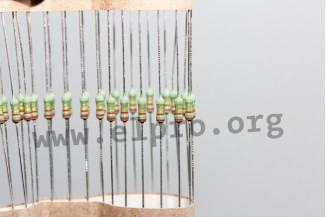

metal oxid resistors WK2 by Vishay Draloric

• housing: 0207
• power: 1 W
• tolerance: 5%
• style: taped
• rugged metal oxide film
• high power dissipation in small size
• high temperature coating, non-flammable
• operating voltage.: 500Vrms
• thermal resi...

metal oxid resistors WK2 by Vishay Draloric

• housing: 0207
• power: 1 W
• tolerance: 5%
• style: taped
• rugged metal oxide film
• high power dissipation in small size
• high temperature coating, non-flammable
• operating voltage.: 500Vrms
• thermal resistance.: 140K/Ω
• insulation resistance.: 1000MΩ
• insulation voltage (1 min): 500Vrms
• temperature coefficient: ±200ppm/K
• temperature range: -55...+200°C
• climatic category: 55/200/56
• failure rate, max.: 1x10-8/h
• by Vishay Draloric
• weight: 0.2g
