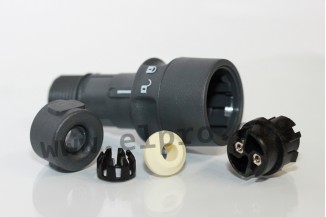

circular cable connector Buccaneer 6000 by Bulgin

• series: Buccaneer 6000
• housing: thermoplastic
• watertight
• protection class IP66, IP68 and IP69K (when coupled)
• push-/pull locking system
• 30° rotation lock prevents accidental disconnection
• by Bulgin

PXM6010_, PXM6011_, PXM6012_:
• flex, in-line flex and front panel cable connectors
• full thermoplastic version of the body: UV-resistant, halogen-free
• 2, 3, 8, 16 and 22 polie
• PXP60_P: male
• PXP60_S: female
• cable extension: 4...10mm diameter
• shockproof contacts
• polarization and visual orientation features help to correct plug connectors togehter
• housing material: PC/PBT (UL94 V-0)
• contact material: nickel-plated brass
• contact accommodation, max. 10mΩ
• insulation resistance, min. (@500V DC): 10⁶MΩ
• operating temperature range: -40...+120°C
suitable sealing caps
suitable solder contacts

PXP603_, PXP 604_
• with USB and ethernet interface
• flex and front panel mounting connectors
• plastic design of the body
• independent verification of seals (of protection)
• shielded system
• polarization and visual alignment features to check your plugging the connectors

PXP6033TP, PXP6033TP-E:
• ethernet jack/connector coupling
• sealed by plate
• Cat 5e shielded coupler
• suitable for all flex connectors (plastic and metal)
• standard RJ45 finished cable can be plugged into rear
• single hole mounting
• complete with panel sealing
• PXP6033TP: Cat 5e coupling
• PXP6033TP-E: Cat 5e coupling with earth

PXP6042-A, PXP6042-B:
• USB female/straight connector
• protection type A or B USB connector
• front panel mounting
• PXP6042-A: sealed A type at front panel, default Type B at the back
• PXP6042-B: sealed B type at front panel, default Type A at the back
• suitable for PXP6040_ and PXP6041_ cable connectors

PXP6043-A, PXP6043-B:
• USB Female/Straight Connector with 5-way crimp
• protection type A or B USB connector
• front panel mounting
• PXP6043-A: sealed A type at front panel, 5-way crimp on the back
• PXP6043-B: sealed B type at front panel, 5-way crimp on the back
• suitable for PXP6040_ and PXP6041_ cable connectors

PXP6034-B:
• flex ethernet cable connectors, rewireable
features
• with shielded RJ45 connector
• suitable for use with cables of 4 to 7mm in diameter
• suitable for all front panel cable connectors (plastic and metal)

PXP6037-_M00:
• ethernet cable, assembled
• IP RJ Buccaneer with shielded RJ45 connector
• one-sided connection
• connector with molded cable
• cable type S-FTP
• PUR jacket of the cable
• wiring to 568-B
• exceeds EIA / TIA Cat 5e
• standard lengths: 2m, 3m and 5m
• suitable for all front panel cable connectors (plastic and metal)

PXP6040-A_, PXP6040-B_:
• one-sided, sealed USB cable, assembled
• PXP6040-A_: enclosure type A USB to standard USB type B
• PXP6040-B_: enclosure type B USB to standard USB type A
• standard lengths: 2m, 3m and 5m
• suitable for all front panel cable connectors
