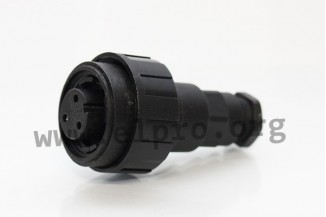

circular cable connector Buccaneer Standard by Bulgin

* series: Buccaneer Standard
* watertight
* degree of protection: IP68
* 2, 3, 4 and 6 pole
* PX_P: male
* PX_S: female
* for cables with 6...8mm diameter, 3,5...9mm with additional gland pack
* diame...

circular cable connector Buccaneer Standard by Bulgin

* series: Buccaneer Standard
* watertight
* degree of protection: IP68
* 2, 3, 4 and 6 pole
* PX_P: male
* PX_S: female
* for cables with 6...8mm diameter, 3,5...9mm with additional gland pack
* diameter over coupling ring 38,1mm
* housing material: glass filled polyamide (UL94-V0)
* contact material: brass, nickel-plated
* rated current 2, 3 pole: 12A
* rated current 4 pole: 10A
* rated current 6 pole: 5A
* rated voltage: 250V AC/DC
* contact accommodation, max. 2, 3 pole: 4mm2 (12AWG)
* contact accommodation, max. 4, 6 pole: 1,5mm2 (16AWG)
* contact resistance, ,max.: 10mΩ
* insulation resistance, min. (@500V DC): 104MΩ
* breakdown voltage, AC (pole/pole): 4kV
* operating temperature range: -20...+70°C
* by Bulgin

suitable sealing caps

> More
Data Sheet
