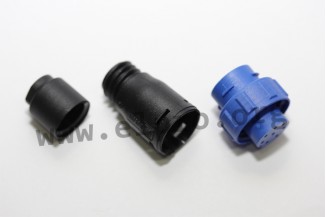

circular cable connector Buccaneer 400 by Bulgin

• series: Buccaneer 400
• watertight
• degree of protection: IP68, EN 60529
• for cables with 3...7mm mounting diameter
• 2, 3, 4, 6, 8, 10 and 12 pole
• PX_P: male
• PX_S: female
• housing Material: polya...

circular cable connector Buccaneer 400 by Bulgin

• series: Buccaneer 400
• watertight
• degree of protection: IP68, EN 60529
• for cables with 3...7mm mounting diameter
• 2, 3, 4, 6, 8, 10 and 12 pole
• PX_P: male
• PX_S: female
• housing Material: polyamide (VL94-V0)
• contact Material: copper-alloy, gold-plated
• contact resistance, max.: 5mΩ
• insulation resistance, min. (@500V DC): 106MΩ
• breakdown voltage, AC: 2,5kV
• operating temperature range: -40...+80°C
• by Bulgin

2, 3 pole
• rated current: 8A
• rated voltage: 250V AC/DC

4,6, 8 pole
• rated current:5A
• rated voltage: 125V AC/DC

10, 12 pole
• rated current: 1A
• rated voltage: 50V AC/DC


solder contacts must be ordered separately

suitable sealing caps
