> Passive elements>Connectors>Circular connectors>Conec connectors, panel mounting, with screw locking, with wire, SAL series

Manufacturers

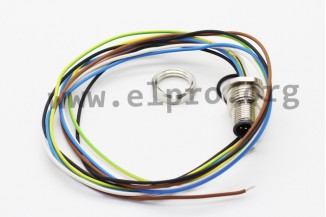

panel connector with screw locking SAL by Conec

* series: SAL
* cable mounting
* with wire
* cable connectors with screw locking
* cable PVC, AWG24, UL
* connection type: screw
* degree of protection: IP67 (in mated condition)
* temperature range: -30......

panel connector with screw locking SAL by Conec

* series: SAL
* cable mounting
* with wire
* cable connectors with screw locking
* cable PVC, AWG24, UL
* connection type: screw
* degree of protection: IP67 (in mated condition)
* temperature range: -30...+80°C
* insulation resistance, max.: >100MΩ
* mating cycles: >100
* material of contact: CuZn
* contact plating: Ni-plated, Au-plated
* by Conec

fixing thread M8x1
* cable length: 0,2m
* panel mounting with M8x0,5-thread
* rated voltage 3-pole: 60V
* rated voltage 4-pole: 30V
* rated current (40°C): 3A

fixing thread M12x1
* cable length: 0,5m
* panel mounting with M16x1,5-thread (the fixing nuts must be ordered separately)
* rated voltage 4-pole: 250V
* rated voltage 5-pole: 60V
* rated current (40°C): 4A

the fixing nuts must be ordered separately

> More
Showing 1 - 12 of 12 products
