> Passive elements>Connectors>Circular connectors>Binder connectors, screw locking, M12 A-Coded, 713 series

Manufacturers

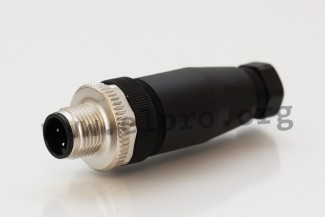

connectors with screw locking M12 A-coded, 713 by Binder

* series: M12 A-coded, 713
* cable mounting
* cable connectors with screw locking
* thread locking M12x1
* screw connection
* shield connection with shield ring/iris type spring
* UL versions
* de...

connectors with screw locking M12 A-coded, 713 by Binder

* series: M12 A-coded, 713
* cable mounting
* cable connectors with screw locking
* thread locking M12x1
* screw connection
* shield connection with shield ring/iris type spring
* UL versions
* degree of protection IP67
* termination: screw
* wire gauge, max.: 0,75mm2
* cable outlet, max.: 4...6mm
* degree of protection: IP67
* mechanical operating life: >50 Cycles
* temperature range: -25...+85°C
* rated voltage 99-_-_404: 250V
* rated voltage 99-_-_405: 125V
* rated current (40°C): 4A
* contact resistance, max.: 8mΩ
* material of contact: CuZn, optaloy
* material of housing: PA
* by Binder

> More
Data Sheet
