Bulgin ethernet connectors, IP68, waterproof, Ethernet Buccaneer series

• dust and waterproof sealing when mated
• IP68
• Cat.5e compliant: data rate up to 100MHz
• PUR jacket on cable and shielded system: high noise immunity and EMI protection
• Cat.5e shielded coupler
• shroud on RJ45: protection from abouse and mis-mati...

• dust and waterproof sealing when mated
• IP68
• Cat.5e compliant: data rate up to 100MHz
• PUR jacket on cable and shielded system: high noise immunity and EMI protection
• Cat.5e shielded coupler
• shroud on RJ45: protection from abouse and mis-mating
• screw coupling: secure, proven locking system
• PCB mounted panel connector
• IDC termination panel connector
• pole: 4
• housing material: PVC, UL94V-0
• colour: black
• contact material: phosphor bronze
• contact surface: gold-plated
• rated current: 1,5A.
• rated voltage: 30V AC
• temperature range: -20...+70°C
• by Bulgin

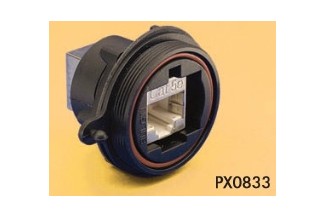

PX0833
• for panel mounting connector
• Cat 5e shielded coupler
• matex with PX0834/B flex connector
• standard RJ45 can be plugged intro rear
• single hole fixing
• with panel sealing gasket

PX0834/B
• re-wireable flex connector
• mates with all panel mounting connectors
• with shielded RJ45 plug
• for other cable sizes from 3,5 to 8mm diameter

PX0837_
• patchcords with IP68 connector and shielded RJ45 plug
• mates with all panel mounting connectors
• length: 2m, 3m and 5m
• S-FTP cable construction
• PUR jacket cable
• wiring configuration to 568-B
• exceeds EIA/TIA Cat 5e
