> Passive elements>Connectors>USB panel jacks>Bulgin USB connectors, IP68, waterproof, USB Buccaneer series

Manufacturers

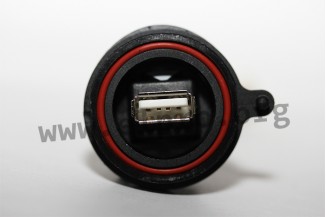

USB connectors by Bulgin

• series USB-buccaneer
• dust and waterproof sealing when mated
• low and high speed bus connection, 1,5...450Mbs
• plug and play: hot plug, standard 4 pole interface
• high noise immunity and EMI protection
• proven locking sy...

USB connectors by Bulgin

• series USB-buccaneer
• dust and waterproof sealing when mated
• low and high speed bus connection, 1,5...450Mbs
• plug and play: hot plug, standard 4 pole interface
• high noise immunity and EMI protection
• proven locking system
• direct mounting or via adaptor leads
• corresponding USB2.0
• pole: 4
• housing material: PVC, UL94V-0
• colour: black
• contact material: copper alloy
• contact surface: gold-plated
• rated current: 1,0A
• rated voltage: 30V AC
• temperature range: 0...+70°C
• by Bulgin

front panel mounting connector:
• PX0842/A, A-type - standard B to rear
• PX0842/B, B-type - standard A to rear
• PX0843/A, A-type - 5 way crimp to rear
• PX0843/B, B-type - 5 way crimp to rear

sealed USB cable, single ended, A-type to standard B
• PX0840/A/2M00, length 2 m
• PX0840/A/3M00, length 3 m
• PX0840/A/5M00, length 5 m

sealed USB cable, single ended, B-type to standard A
• PX0840/B/2M00, length 2 m
• PX0840/B/3M00, length 3 m
• PX0840/B/5M00, length 5 m

seling caps:
• PX0733, for front panel mounting connectors PX0842 and PX0843
• PX0835, for cable connectors PX0840/_

> More
Data Sheet
--
