Mean Well DC/AC converter series TN-1500

Inverters with 1500W, a status indicator, a UPS function, a power ON/OFF switch, a fan and an automatic shutdown function in case of a deeply discharged battery. These devices have a pure sine wave output (...

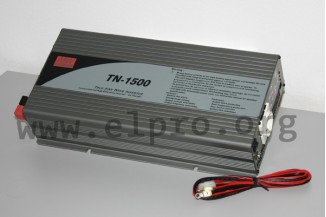

Mean Well DC/AC converter series TN-1500

Inverters with 1500W, a status indicator, a UPS function, a power ON/OFF switch, a fan and an automatic shutdown function in case of a deeply discharged battery. These devices have a pure sine wave output (THD<3%) and are protected against overload, overvoltage, overtemperature, voltage reversal as well as short circuit. They have a built-in solar/AC charger, trigger an alarm in case of a low battery voltage and comply with EN62368-1, EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: TN-1500-212B and TN-1500-224B.

  • output: 1500W (peak power 3000W)
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50Hz ±0,1%
  • curve shape: pure sine wave (THD<3%)
  • operating temperature: 0 to +40°C
  • weight: 6850g
> More
Data Sheet
