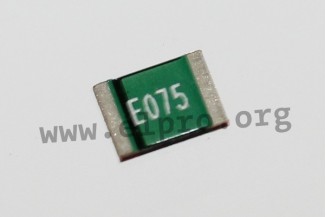

PTC SMD-fuses ERFSD by ECE

* rated current: 0.14 to 1.5A
* housing: 1812 (4.73x3.41mm)
* style: taped
* rated current: 0.14 to 1.5A
* resettable switching device
* low current loss due to a low resistance in normal use
* protection against overcurrent a...

PTC SMD-fuses ERFSD by ECE

* rated current: 0.14 to 1.5A
* housing: 1812 (4.73x3.41mm)
* style: taped
* rated current: 0.14 to 1.5A
* resettable switching device
* low current loss due to a low resistance in normal use
* protection against overcurrent and short circuit. The mode of action is based on the PTC effect. In standard use, the resistance of the device is very low so that only a small power loss arises. In the event of an error, short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the device quickly returns to a low impedance state.
* Ideal for use in PC cards for computer telecom applications and general electronics.
* terminal pad material: tin-plated copper
* typ. power rating: 0.8W, ERFSD1501220Z: 1W
* temperature range: up -40 to +85°C


> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • ECE
    ERF SD 8V 1,1A
    0,08 €
    46357 ERF SD 8V 1,1A ERFSD1100820Z ERFSD1100820Z
    0,08 €
