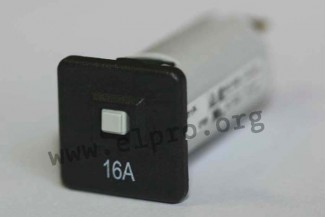

> Passive elements>Fuses>Circuit breakers>Schurter circuit breakers, snap-in type, with imprint in the front, T9-611P series

Manufacturers

in fuseholder-housing, snap-in-mounting

• single pole thermal circuit breaker
• ideal as replacement for fuses, especially for higher rated current
• advantage of being immune to high inrush currents and line transients
• easy snap-in mounting
• for f...

in fuseholder-housing, snap-in-mounting

• single pole thermal circuit breaker
• ideal as replacement for fuses, especially for higher rated current
• advantage of being immune to high inrush currents and line transients
• easy snap-in mounting
• for frontpanel with thickness 0.8...2mm
• quick connect terminals 6.3x0.8mm
• rated voltage:
240V AC
48V AC
• conditional short circuit current (PC1, 240V AC): 2000A
• dielectric strenght: 1500V AC
• insulation resistance (500V DC): >100MΩ
• type of tripping: cycling trip-free
• weight: 9g
